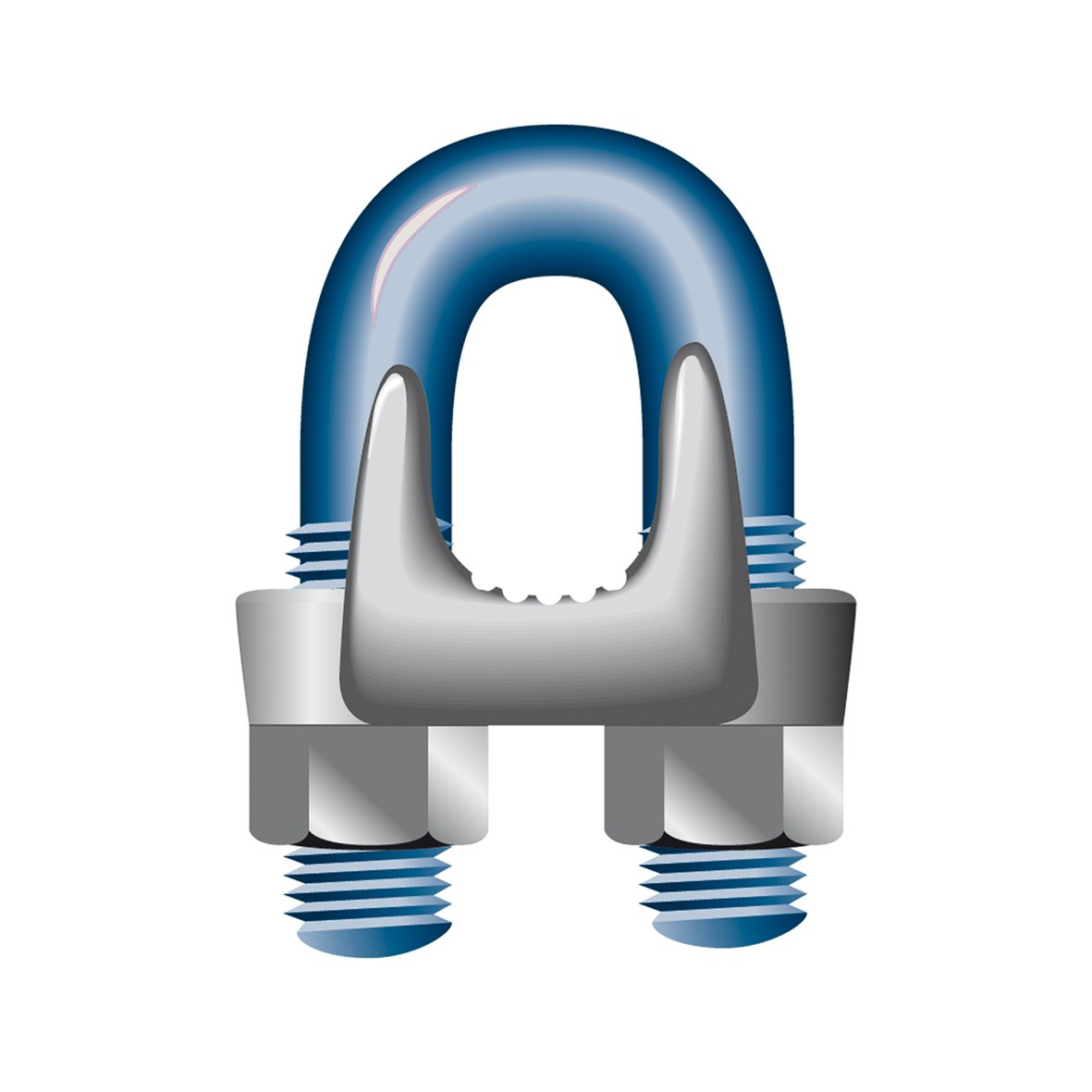

SUJETACABLES EN 13411-5 TIPO B (ALTA RESISTENCIA)

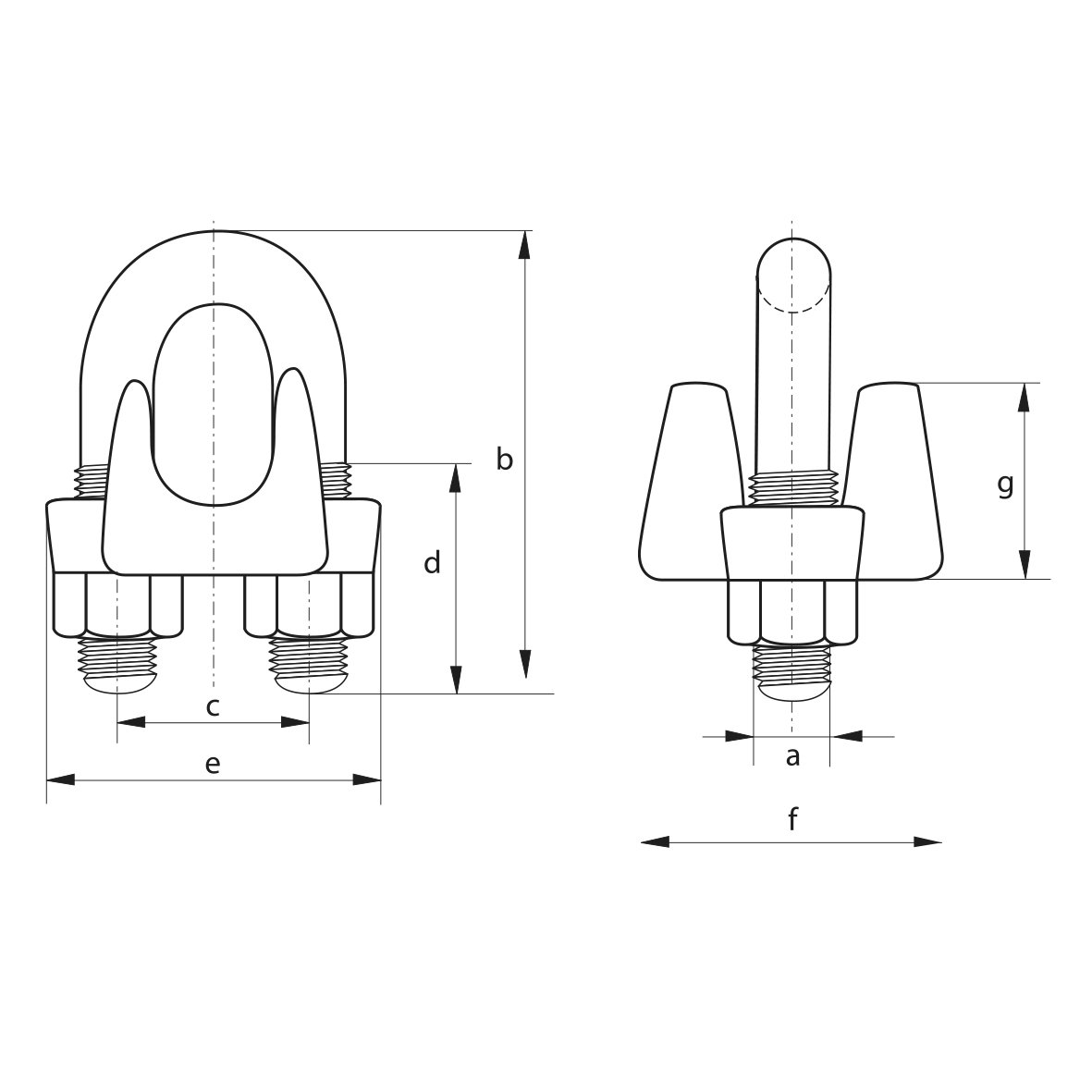

Código	Ø cable mm	Ø mm	B mm	C mm	D mm	E mm	F mm	G mm	Peso kg/100 uds.
2SFJXX0304BEZ	4	5	24	12	11	24	21	10	2
2SFJXX0005BEZ	5	6	31	15	13	29	24	13	4
2SFJXX0607BEZ	7	10	34	19	13	37	30	18	8
2SFJXX0008BEZ	8	11	45	22	19	43	33	19	13
2SFJXX0910BEZ	10	12	49	26	19	49	42	25	19
2SFJXX0011BEZ	11	13	60	30	25	58	46	26	33
2SFJXX1213BEZ	13	14	61	30	25	58	48	31	34
2SFJXX1415BEZ	15	14	72	33	32	63	52	31	45
2SFJXX0016BEZ	16	16	74	33	32	64	54	36	45
2SFJXX0020BEZ	20	19	86	38	37	72	57	38	68
2SFJXX0022BEZ	22	19	98	45	41	80	62	40	108
2SFJXX2426BEZ	26	19	108	48	46	88	67	47	114
2SFJXX2830BEZ	30	19	117	51	51	91	73	48	140
2SFJXX0234BEZ	34	22	130	59	54	105	79	56	207
2SFJXX0036BEZ	36	22	140	60	59	108	79	58	234
2SFJXX3840BEZ	40	22	147	66	60	112	85	64	254
2SFJXX0042BEZ	42	25	161	70	67	121	92	67	329
2SFJXX0046BEZ	46	29	174	78	70	134	97	76	441
2SAR000200BEZ	52	32	195	86	78	150	113	85	603

Diámetro del cable Pulg	Diámetro del cable mm	Sujetacables Cantidad mín.	Longitud del cable mm	Valor de torque Nm
1/8	3 - 4	2	85	6,1
3/16	5	2	95	10,2
1/4	6 - 7	2	120	20,3
5/16	8	3	133	40,7
3/8	9 - 10	3	165	61,0
7/16	11 - 12	3	178	88,0
1/2	13	3	292	88,0
9/16	14 - 15	3	305	129,0
5/8	16	3	305	129,0
3/4	18 - 20	4	460	176,0
7/8	22	4	480	305,0
1	24 - 26	5	660	305,0
1 1/8	28 - 30	6	860	305,0
1 1/4	32 - 34	7	1.120	488,0
1 3/8	36	7	1.120	488,0
1 1/2	38 - 40	8	1.370	488,0
1 5/8	41 - 42	8	1.470	583,0
1 3/4	44 - 46	8	1.550	800,0
2	48 - 52	8	1.800	1.017,0
2 1/4	56 - 58	8	1.850	1.017,0
2 1/2	62 - 65	9	2.130	1.017,0
2 3/4	68 - 72	10	2.540	1.017,0
3	75 - 78	10	2.690	1.627,0
